II. BAIHP Technical Assistance HFH

Habitat for Humanity-BAIHP Partnership
Americus, Georgia (HFHI) and Habitat affiliates nationwide
Category A, 11 Homes (Lakeland HFH)
Category B, 446 Homes
Category C, 260 Homes
Papers: Case Study: 2003 Jimmy Carter Work Project, LaGrange Site
            Case Study: Florida Habitat Homes in Lakeland, Broward and Alachua Counties
            Case Study: Houston Habitat for Humanity

Beal, David and Janet McIlvaine (2006.) “Energy and Indoor Air Quality Recommendations for Cold Climate Habitat for Humanity Homes.” FSEC-CR-1647-06, Florida Solar Energy Center, Cocoa, Florida. August 2006.

The Building America-Habitat for Humanity partnership, formed in 1995 at Habitat’s Environmental Initiative Kickoff, has brought BAIHP into the design, construction, and evaluation process of over 600 Habitat homes across the nation built by 50 Habitat for Humanity affiliates in more than 20 states. BAIHP activities with Habitat (including those conducted under the Energy Efficient Industrialized Housing Project) are listed in Table 19 (page 61). Activities generally fall into three categories:

• Technical Assistance to Habitat for Humanity International (HFHI), high profile HFHI projects (Congress Building America, Builders Blitz, and Katrina Recovery, and HFH affiliates (local chapters)
• Research
• Training at regional and national HFH conferences

Introduction:
BAIHP energy efficiency recommendations for Habitat homes all meet the following four criteria in increase likelihood of sustainable change and to ensure a good fit with Habitat's construction process and business model:

• Proven reliable and cost effective
• Volunteer friendly
• Readily available in current market
• Easily maintained and repaired by normal trades

Since the inception of FSEC’s partnership with Habitat, researchers have been privileged to work along side some of America’s brightest building scientists representing SouthFace Energy Institute, Oak Ridge National Laboratory, National Renewable Energy Laboratory, contractors with the California Energy Commission, the Alliance to Save Energy, various electric and multi-fuel utilities, members of Habitat’s own Green Team (defunct in 2004), and volunteer members of the Energy Efficient Building Association. In 2005, BAIHP and Habitat partnered with RESNET to team volunteer Home Energy Raters with Habitat affiliates in HFHI’s Congress Building America Program (more information on this project below), expanding that partnership in 2006 to include all interested Habitat affiliates.

Partially because of Building America (and other DOE supported organizations) involvement with Habitat over the past 10 years, HFHI adopted Energy Star as one of their two Best Construction Practices for all U.S. affiliates. Best Practices are used to evaluate affiliate status. This represents a major commitment to energy efficiency from the highest ranks of Habitat International. Affiliates are encouraged to consistently achieve Best Practices and the requests for and prevalence of Energy Star ratings for Habitat affiliates has surged as a result.

I. A. Technical Assistance to Habitat for Humanity International (HFHI), high profile HFHI projects (Congress Building America, Builders Blitz, and Katrina Recovery, and HFH affiliates (local chapters)

Figure 24.  Almost Heaven Habitat for Humanity’ Congress Building America house on day of dedication.

Congress Build America (CBA) (February 2005 – June 2006)
Background:
In February of 2005,BAIHP researchers announced DOE’s Building America partnership with Habitat for Humanity International’s (HFHI) Congress Building America (CBA) project. The announcement was made at the dedication of Almost Heaven’s CBA house (Figure 24) which was built in partnership with Shelley Moore Capito, United States Representative second congressional district of West Virginia. Identical concurrent resolutions--Senate Concurrent Resolution 43 and House Concurrent Resolution 184 express the Congressional support of this project.

The memorandum of understanding between the affiliates and the HFHI includes language making the Building America technical review part of the standard process. All CBA affiliates were invited to submit designs to BAIHP researchers for evaluation. Researchers expected to conduct about 30 evaluations based on an expected response of 30% of the projected 100 houses to be built under the program.
Actual construction of CBA houses fell dramatically short of this 100 house expectation due to a nationwide re-direction of effort to support the Gulf Coast Recovery (see next section for more info) and to participate in another HFHI program called the Builders Blitz.

CBA-BA Partnership Kick Off:
After announcing the CBA-BA partnership formally in West Virginia at the dedication of the first WV CBA house (February 2005), researchers attended HFHI’s Urban Conference in Washington D.C. where they talked about the technical support being made available to Habitat’s CBA affiliates (and other affiliates). Response was very positive. Mr. Edward Pollock and George James attended a CBA luncheon and addressed the group with an introduction into Building America and our systems engineering approach.

CBA Communications:
A database populated with 226 stakeholders including Habitat affiliates and congressional staff members. Researchers use the CBA database for tracking communications, technical assistance, and progress. In 2006, BAIHP began expanding this database to include all HFH technical assistance activities.

All of the CBA affiliates received two information packages, one in the Spring of 2006 and one in the Winter of 2006. Packages included information on shared goals of CBA and U.S. DOE BA program, resources available to CBA affiliates, a “Partnership Updates,” and an offer of BA technical assistance. Three affiliates responded with interest to the first package with requests for assistance. Package 2 was an update of CBA-BA activities based on field visits with CBA affiliates in Michigan in June.

Congressional members and their staff members specializing in housing and energy issues also received both packages as well. A separate package was sent to all five Building America teams. BAIHP staff visited the office of Senator Bill Nelson, a native of Brevard County, home of the Florida Solar Energy Center, and met with Ms. M. Bridget Walsh, Deputy Legislative Director, introducing her to Building America program and encouraging Senator Nelson’s office to participate in the Congress Building America project.

CBA-BA-RESNET Partnership:
BAIHP worked with Steve Baden at RESNET to recruit volunteer raters for the effort. RESNET issued a “Call for Volunteers” in their newsletter in April and in May posted an article about the partnership on their website along with material that McIlvaine developed to explain the partnership to the RESNET volunteers. Response has been very strong and several dozen RESNET members volunteered within the first month. Materials describing the benefits to RESNET volunteers are online at: /casestud/hfh_partner/index.htm In 2006, RESNET and HFHI decided to expand the partnership beyond CBA to accommodate those volunteer raters outside the CBA affiliate areas.

CBA Plan Packages:
The Building Science Consortium developed full plan packages with complete sets of building plans (per Mr. Garman and Mr. Pollock’s request), including building science. BAIHP reviewed the plans specifically for volunteer friendliness. The packages are available free online at www.buildingscience.com (search for “Affordable House Plans” or “Congress Building America”). Habitat International is strongly supportive of this effort, and has regularly recommended that affiliates review the materials.

CBA-BA Partnership Website:
A map of all CBA affiliates is posted on /casestud/hfh_partner/index.htm along with a summary of the partnership, a link to request more information, an activities update and other communication pieces. An update of BA-CBA activities has been added to that web page and was distributed to all participants in CBA.

Certificates of Recognition:
CBA affiliates partnering with Building America received Certificates of Recognition (approved by DOE). Affiliate staff showed a surprising interest in them and seemed genuinely pleased to receive them.

CBA Restructuring:
HFHI recently announced that the CBA program would be restructured. BA staff awaits details of the changes but plan to continue working with these progressive affiliates to demonstrate achievable energy efficiency in affordable housing – setting an example for the whole building community.

CBA Michigan Affiliates:
While in Michigan for the 2005 Jimmy Carter Work Project, researchers met with five other CBA-HFH affiliates who (in addition to Harbor Habitat) responded to BAIHP’s initial mailing with interest in partnership:

• Kalamazoo Valley HFH in Kalamazoo, MI
• HFH of Lansing in Lansing, MI
• HFH of Monroe County in Monroe, MI
• Blue Water HFH in Port Huron, MI
• Lakeshore HFH in Holland, MI

A Congress Building America contract report was written summarizing the findings of these visits with recommendations and best practices. The report was distributed all the affiliates, HFHI staff, and the Michigan Habitat Association, a statewide support arm of HFHI, who requested parametric analysis for use with their energy efficiency grant program.

HFHI Builders Blitz
The Builders Blitz program grew exponentially during the 2005 and 2006 projects. Designed to draw the local building community into Habitat partnership, the program teams local home builder associations (HBAs) with local HFH affiliates. The HBA works out a sponsorship scheme with its members who usually chip materials, sub-contractors, site supervision, and volunteers. The affiliate generates local press coverage and introduces the whole group to the Habitat building process. BAIHP supported two affiliates participating in the Builder Blitz in the summer of 2005 and 2006 through sub-contractors Calcs Plus in Venice (FL) and Guaranteed Watt Saver in Oklahoma City (OK). Calcs Plus produced HERS ‘99 ratings, Manual J and D calculations for two Energy Star houses in the summer of 2005 and three houses in the spring of 2006. GWS produced the same for 10 homes built by the affiliate in Oklahoma City in the summer of 2006. In the future, BAIHP will invite more Builder Blitz affiliates to participate in BA activities.

Gulf Coast Recovery Effort, Recommendations for Rebuilding (September 2005- June 2006)
In the weeks following Hurricane Katrina, HFHI staff called on BAIHP for assistance with a variety of concerns including guidelines for safely reoccupying homes, minimizing moisture damage, and priorities for deconstruction and reconstruction.

Initially, BAIHP provided Energy Star ratings and two Building America packages for HFHI’s first design for rebuilding. BAIHP’s major contribution to the recovery effort was support to HFHI’s Department of Construction and Environmental resources and HFHI’s Operation Home Delivery (OHD), a new department set up to handle Gulf Coast rebuilding activities.

Researchers participated in vigorous discourse about how Habitat should rebuild, responding to in excess of 1000 emails from HFHI staff, HFH affiliate staff, and other building scientists involved with the recovery effort including DOE’s Katrina Informal Green Working Group.

BAIHP completed and delivered energy analysis comparing typical Louisiana construction specs to the new HFHI minimum standards. Annual energy use, HERS ‘99 ratings (1999 and 2006), IECC compliance were calculated for each of HFHI’s 8 new floor plans that will be used for both HFH affiliate site building and modular construction in the Gulf Coast region. Additional analysis of several improvements was requested and delivered.

In June, a first draft of construction standards that encompass site safety, occupant health, building durability, and energy efficiency was produced with launch scheduled for October of 2006. As the main energy elements of the standards were finalized, BAIHP provided analysis of eight designs including Energy Star ’99 rating, HERS ’06 Index, IECC ’03-06 compliance, and projected annual energy use in comparison to typical specifications (developed with LSU faculty member Dr. Claudette Reichel.)

In addition to this primary activity, BAIHP staff directed many inquiries to existing resources, some developed under partial DOE funding. Researchers also responded to inquires directly from Habitat affiliates in the recovery region and participated in a number of collaborative activities related to rebuilding:

• In October of 2005, BAIHP coordinated early discussion between the Federation of America Scientists (FAS) and HFHI. FAS built a prototype house in partnership with LSU on a lot donated by Baton Rouge HFH.

• Selection of an existing facility
• Identifying the retrofits that will be necessary
• Layout alternatives for the factory incorporating lean production principles

The team also recommended changes to interior layouts to open up the designs, making them more compatible with conventional home designs, and introduced the issue of factory installation of HVAC equipment and its effect on production. The UCF-IE research team and FSEC researcher D. Beal hosted a workshop in May 2006 for Habitat representatives to review progress in planning the new factory. Revised drafts of the following design products were presented: value stream map, factory layout and detailed process descriptions. Lean production principles were embedded throughout the factory design. Many possible enhancements were discussed during the workshop. The team followed up by exploring each idea, refining the factory design to incorporate viable enhancements, and resubmitting to Habitat.

Ultimately, OHD decided against launching a factory in favor of working with modular manufacturers. In subsequent months, BAIHP provided contacts to HFHI in the manufactured housing industry including long time BAIHP partner Palm Harbor Homes. In a related project, one of OHD’s high profile sponsors, Oprah Winfrey, worked out the details of a community with Baton Rouge HFH to be comprised of 15 Palm Harbor modular homes. In the fall, BAIHP will continue to support this effort providing both analysis and on-site support during production. All the houses will be Energy Star qualified.

Habitat Builder Option Packages – HabiBOPs
During the 6th budget period FSEC researchers met with Habitat for Humanity International staff at HFHI headquarters in Americus, Georgia to discuss the need and possible solutions for the challenges that Habitat affiliates face in their effort to achieve Energy Star status.

HFHI drafted a new Habitat initiative named “Habitat Better Built” to encourage affiliates to embrace energy efficiency, durability, and healthy indoor air quality as part of a larger move toward increasing construction capacity. This built from BAIHP efforts in previous budget years to develop an Energy Star equivalency program (called HabiBOPs) for Habitat affiliates. The BAIHP-HFHI draft (2002) included a request for EPA analysis of additional Builder Option Packages (BOPs) for various Climate Zones as a pilot study for adding BOPs that emphasize envelope improvements over expensive equipment improvements. The simulation work was never funded and was outside the scope of BAIHP’s work plan.

With the advent of the 2006 Energy Star New Homes Program, there is some interest at EPA in evaluating the feasibility of achieving Energy Star for affordable housing. EPA contacted BAIHP researchers three times during the final year of the project to discuss concerns that drove the original HabiBOP effort including the emphasis of equipment efficiency, rather than envelope improvements, to achieve Energy Star via the National Building Option Package path as well as the unavailability of raters in many locations (a concern for all builders – not just Habitat).

HFH affiliates in Jacksonville (FL), Indian River County (FL), Birmingham (AL) and Houston, TX had all agreed to field test the pilot HabiBOP program in Year 5 of the BAIHP project.

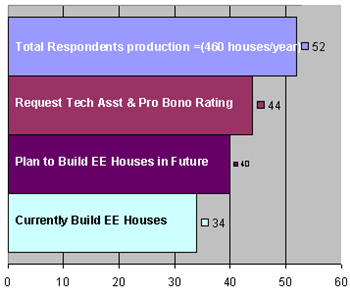

Figure 25. Responses to a 2002 BAIHP-HFHI survey of affiliate interest in energy efficiency and Home Energy Ratings.

Joint Grant Proposal
In 2002, BAIHP supported a HFHI proposal to fund writing and production of a national HFH homeowner’s manual. Homeowner education, particularly about energy efficiency, indoor air quality, and maintenance issues is a frequently cited area of weakness in Habitat’s homeownership program. The proposal was not funded, but HFHI later used a portion of it to successfully apply for an EPA grant to produce a homeowner guide about indoor air quality. The electronic version is available free to all affiliates.

Survey of Affiliate Energy Practices
In 2001 and 2002, BAIHP worked with HFHI to conduct a survey among the most productive domestic affiliates about current energy practices. The survey helped to illuminate the progress that HFHI training had foster since the inception of the Environmental Initiative in 1995 when very few affiliates actively embraced energy efficiency.

Fifty-two affiliates responded (Figure 25) representing a construction capacity of 460 homes annually. Of the 52 affiliates, 34 indicated that, after learning about Energy Star in the BAIHP session, they thought that some of the homes they had built would qualify for Energy Star status and 44 affiliates indicated that they would be interested in a HERS ‘99 rating if it were available for free and BAIHP design assistance (DA). Follow up to the survey involved helping affiliates make contact with a home energy rater in the region to produce a preliminary Energy Star rating – a precursor to the RESNET-BA-HFHI partnership launched in the final year of the project

Technology Evaluation
Over the past decade, affiliate interest in alternative building systems has escalated and BAIHP has frequently conducted simulation analyses to provide affiliates with performance comparisons.

At the request of HFHI, BAIHP tested a home built by Home Front, Inc. in Sarasota, Florida. The house scored an 87.6 on the HERS ‘99 scale. Built with structural insulated panels (SIP), which contain a polystyrene core faced on both sides with a thin concrete board. The exterior finish is stucco with Hardy board trim. A structural steel wind-frame welded to steel plates imbedded in the slab was engineered to withstand hurricane force winds. The panels passed Dade County large missile impact and wind load testing.

Interior ducts are housed in a central corridor and connect to a heat pump in a central closet. Return air is drawn from each room through extra registers on the duct chase. A whole house fan at one end of the chase provides ventilation during shoulder seasons. Findings were reported to HFHI.

HFHI 2005 Jimmy Carter Work Project
A team of 4 BAIHP researchers joined the 2005 JCWP in Benton Harbor MI. Working with Harbor Habitat for Humanity, 2 team members conducted training of all house leaders (plus some crew leaders) the before the JCWP began (Saturday), and were in charge of an Energy Crew during the week-long build that implemented energy efficiency improvements (air sealing, insulation, crawlspace sealing, and duct sealing) in 20 homes. 2 more BAIHP researchers joined them on Friday and assisted with the testing of the 20 homes built during the 2005 JCWP.

All 24 homes built in the JCWP 2005 in Benton Harbor were tested and rated by a local group, WARM Training, soon after the JCWP. All were Energy Star homes, each featuring a conditioned crawl space, high efficiency (direct vent combustion) gas furnace, excellent windows, Energy Star appliances, outside air ventilation, and very low infiltration. Certificates in “Recognition of Excellence” were prepared for both affiliates and delivered to Trevor Riggen (HFHI Washington Office). All Benton Harbor JCWP houses were registered at Energy Star homes and each homeowner received notice of such with a cover letter from BAIHP.

HFHI 2003 Jimmy Carter Work Project (2003 JCWP)
Habitat International Director of Construction and Environment requested FSEC assistance for all three Carter Project affiliates: Calhoun County (AL) and LaGrange (GA). The JCWP affiliate in Valdosta (GA) did not request BAIHP assistance; however, a former Energy Monitor working at the Valdosta site organized an informal corps of volunteers to tackle air sealing and insulation details. The construction manager and executive director made the 2003 JCWP an example of high performance, high quality housing for affiliates and other builders in the region and consequently asked BAIHP for assistance in reviewing construction techniques.

Figure 26. Homeowner Sandy Sedano installs rigid insulation (part of the energy package) on her new home during the 2003 JCWP at the Anniston (AL) site.

Calhoun County HFH:
The Calhoun County HFH affiliate (Anniston, Alabama) built 35 near Energy Star homes during the 2003 JCWP.

BAIHP worked closely with the mechanical contractor and the construction supervisors prior to the build to bring the initial HERS ‘99 ratings of 78 up to 86. Though the houses had been slated to be Energy Star, a miscommunication resulted in the air conditioning efficiency being SEER 10 instead of SEER 12. In Anniston’s mixed-humid climate the difference was enough to drop HERS ‘99 ratings below the 86 target. However, the homes are much more efficient than the previous convention and many volunteers were exposed to energy efficient design and construction as well as combustion safety design (Figure 26). Radon mitigation systems were provided by an Alabama environmental group.

Troup-Chambers HFH (LaGrange, Georgia):
The executive director for this affiliate adopted the Energy Star goal and spearheaded the construction of 22 Energy Star homes during the 2003 JCWP (Figure 27). Four plans were rated and scores ranged from 86.5 to 88.5. BAIHP consulted with the affiliate on window specifications, insulation levels, AC efficiency, and air sealing details particularly with regard to the air handler closets which were previously built with return plenums open to the attic. The affiliate plans to continue building using the JCWP specifications.

Figure 27. 2003 Jimmy Carter Work Project house in LaGrange GA – one of 22 Energy Star homes built in one week.

In the final year of the project, BAIHP researchers converted the LaGrangre HFH write up in the BA Best Practices document into an independent four-page case study. BAIHP worked with staff at NREL to revise the BAIHP Habitat Partnership fact sheet to encompass all BA work with Habitat and to produce 2 new Habitat case studies, the LaGrange and another for the HFH affiliate in Lakeland, FL.

Technical Assistance to Habitat for Humanity Affiliate

During the fifth and sixth budget periods BAIHP’s technical assistance to Habitat affiliates shifted away from general assistance to individual affiliates toward focused technical assistance to progressive affiliates, high production affiliates, and regional and national initiatives including

• Regional Initiative: Gulf coast rebuilding efforts (described above)
• National Initiative: Congress Building America and the Builders Blitz (described above)
• Regional: Ohio’s First Energy grant program for Energy Star affiliates
• Progressive affiliates in Lakeland (FL), Houston, and Loudon County (TN), the latter being an ORNL zero energy home initiative with FSEC monitoring assistance.

A cumulative list of affiliates receiving direct design assistance from BAIHP is shown in Table 19 at the end of this section. Work conducted with individual Habitat affiliates, independent of national and regional initiatives, is presented here, organized by state.

Figure 28.  Transom return air pathway with operable louvers blends in with the vernacular aesthetics of this DESIGN habitat Energy Star home built in conjunction with Auburn University’s College of Architecture.

Alabama: Auburn University
David Hinson from the Auburn University College of Architecture contacted BAIHP about a prototype “DESIGNhabitat” home. Three Energy Star homes have now been built with the local Habitat affiliates in Auburn. The prototype will be offered to affiliates statewide through the Alabama Association of Habitat Affiliates (AAHA) and non-profit Design Alabama. AHA requested indoor air quality and combustion safety testing plus design input on the prototype home in 2002 and 2003. The design features vernacular touches that enhance energy efficiency such as the screened front porch, operable transoms over doors (for ventilation and return air flow), metal roofing, and large overhangs (Figure 28). A sealed combustion closet for the gas water heater, sealed and tested ducts, and high efficiency heating and cooling complete the energy package. In February of 2006, BAIHP participated in studio jury at the Auburn School of Architecture. Competing designs incorporated modular housing into Habitat’s volunteer construction process. A winning design was selected for construction. Palm Harbor Homes built two modules and students construction a joining module on site. The home will be tested and rated in the Fall of 2006 with participation from students.

Alabama: Birmingham HFH
In 2001, BAIHP researchers tested and rated 3 homes for this affiliate and provided the local construction manager with energy analysis and recommendations. Birmingham HFH continued to build Energy Star homes in 2004 - many with HUD approved safe room construction.

Alabama: Calhoun County HFH
Please see 2003 JCWP above, in the summary of work conducted with HFHI.

Florida: Alachua HFH
Florida H.E.R.O. has worked with Alachua Habitat for Humanity for many years. Currently the affiliate is building a subdivision called Celebration Oaks. Summary of specifications is provided in Table 17.

Table 17. Alachua Habitat for Humanity Specifications for Celebration Oaks

Florida: Jacksonville (HabiJAX) HFH
This affiliate, located in Jacksonville, Florida, is one of Habitat’s most productive alliances. In anticipation of HabiJAX involvement in the HabiBOP pilot program, BAIHP completed preliminary HERS ‘99 ratings on planned homes. Follow-up test results indicate that HabiJAX is a good candidate for the program, particularly after the construction manager agreed to incorporate a ventilation strategy and energy efficient lighting into their home designs. This progressive affiliate worked with FSEC (under another contract) to incorporate solar water heating. This affiliate is a regional and national pace setter.

Figure 29. Habitat for Humanity energy efficient home in Lakeland, Florida.

Florida: Lakeland HFH
Category A: 10 houses
Category B: 1 house

BAIHP has rated 11 Building America level houses that this affiliate has built since 2002. (Figure 29) The average HERS ‘99 rating was 89.7. Lakeland Habitat Homes Feature:

Florida: Venice HFH
In 2005 and 2006, Venice HFH worked with BAIHP sub-contractor Calcs-Plus. The affiliate wrote a press release using the BAIHP template and was written up in the local newspaper (see Builders Blitz description above).

Florida: Space Coast and South Brevard HFH
Since the late 1990’s, FSEC has provided Florida Energy Code calculations for one of the Habitat affiliates in Brevard County (where FSEC is located.) Energy Star ratings have been produced for the affiliate (Space Coast Habitat) over the years with recommendations as requested. In 2004, FSEC conducted a rating for the other Brevard County affiliate, South Brevard Habitat. Neither affiliate has yet achieved Energy Star. In the summer of 2005, the affiliates merged and have not requested any additional technical assistance.

Florida, Sumter County HFH
This affiliate attended several courses and seminars taught by BAIHP staff in recent years. As a result, in 2000 the Sumter construction manager began building interior duct systems. One of those systems was tested in March 2002, as part of the Air Handler Air Tightness Study, and found to be connected to the unconditioned attic above. These results were similar to findings in BAIHP’s sister project on Interior Duct Systems. After discussions at the April construction roundtable, modifications were made to the construction approach which became part of their standard building practice for the affiliate.

Georgia: Atlanta HFH
Energy simulations were conducted for insulated concrete form (ICF) homes in Houston and Atlanta. Comparative studies could be conducted in both cities since the same floor plans will be used to build ICF and wood frame homes in those areas. Simulation results from the homes were evaluated to develop suggested improvements that would bring the homes to Energy Star levels. The Houston affiliate is planning a 100-home development and is looking for home performance strategies that would allow them to reach Energy Star at a minimum. Simulations using the measured test data were conducted and recommendations made for their consideration.

The Atlanta home will incorporate substantial thermal mass with concrete ceilings and concrete interior walls. Simulations on the thermal mass benefits were completed and reported. These simulations focused on the use of thermal mass to reduce the size of the heating, ventilation, and air conditioning systems.

Georgia: LaGrange (Troup-Chambers) HFH
Please see 2003 JCWP above.

Georgia: Sumter County HFH
(See also Plains SIP study in Research with Habitat following Habitat Technical Assistance)
BAIHP staff worked with the Sumter County HFH affiliate on the Easter Morning Community from inception in 1995 to completion in 2003. 171 Energy Star or near Energy Star homes were built between 1997 and 2003. Easter Morning blitz builds were used as training activities for Habitat’s Green Team (now defunct). Other energy organizations particularly Oak Ridge National Laboratory and SouthFace Energy Institute provided excellent technical assistance to this affiliate, the original Habitat affiliate based in Americus, GA. As of 2003, Sumter County HFH is no longer building houses because they have partnered with all qualifying residents to meet the goal of HFHI’s 21st Century Challenge which is to eliminate poverty housing in America – one county at a time.

Ohio Affiliates
A utility grant program in Ohio spurred a broad interest among HFH affiliates in reaching Energy Star level. Affiliate with homes built to the Energy Star standard in the utility’s service area will receive a grant that equals the cost of the home. Several affiliates acquired the Example Energy Star Packages from HFHI’s web site and called to discuss them. In response to this interest, HFHI conducted a workshop in early July 2002 attended by sixty people. Subsequently, all affiliates (~30) attending the course have built and had certified at least one Energy Star home. Each has collaborated with a local certified HERS ‘99 rater. Several affiliates contacted BAIHP to clarify aspects of the process and only one affiliate experienced difficulty with the certifying process and received direct support from BAIHP.

Table 18. HERS ‘99 Scores for Baton Rouge Habitat Energy Star Homes

 Nevada Affiliates
FSEC was contacted by Portland Cement Association (PCA) to collaborate on an HFH house planned for the 2003 Builders’ Show in Las Vegas. This collaboration was a joint effort between BAIHP, PCA, and the Las Vegas Habitat for Humanity. For more information on the project, visit: http://www.cement.org/countonconcrete/

New Mexico: Albuquerque HFH
BAIHP completed an initial home design analysis for the Albuquerque HFH which was revised with feedback from the affiliate. Final recommendations were submitted to Albuquerque HFH to assist them in reaching Energy Star status.

Texas: Ellis County HFH
This affiliate reports that they have been building Energy Star homes and now are interested in moving toward a Zero Energy Home similar to the Loudon County HFH project in Tennessee.

Texas: Houston HFH
In 2001, BAIHP completed a preliminary evaluation of the concrete homes built in partnership between Houston HFH and the Portland Cement Association. Staff tested and rated the homes in January 2002 and made recommendations for reaching beyond Energy Star to the Building America standard. Later that year, the affiliate’s construction manager reported that they were now implementing BAIHP energy efficiency, durability, and indoor air quality recommendations. Final home design recommendations included construction of a passive ventilation system and an interior duct system. In 2004, this affiliate reported that all homes (~100) built since FSEC’s 2002 recommendations have exceed Energy Star (rated by local utility) and have passive fresh air ventilation ducted to the air handler with a separate, soffit-mounted filter. In 2005, Houston Habitat built dozens of homes for affiliates the Gulf Coast recovery region.

Washington DC HFH
BAIHP met with DC Habitat’s Executive Director and separately with the Energy and Environment Committee in November of 2005. Current DC HFH specifications would be considered “Energy Improved” and the affiliate was interested in pursuing water conservation and energy improvements that would be very low first cost. Researchers provided information and visited a Solar Decathlon home slated to be sited on DC Habitat land. The house unfortunately was subsequently sold by the team’s university to cover the budget short fall of the project.

Washington State: Grant County HFH
In 2004, WSU staff began providing technical support to Habitat for Humanity for two site built projects in Olympia, WA (marine climate) and Grant Co. (cold climate). Technical support included HVAC design, EnergyGauge analysis and field testing assistance. WSU continues to evaluate these homes; final case studies were being completed in the spring of 2006 for inclusion in the Building America Best Practice series.

The Grant country home utilized standard construction materials and framing, ENERGY STAR HVAC, lighting and appliances. This home moved 100% of the duct system into the conditioned space; from the attic, crawlspace and garage where it was to be installed, at little or no additional cost.

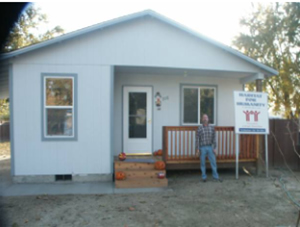

Figure 30. HFH of Greater Moses Lake (WA) Energy Star Home.

Washington State: HFH of Greater Moses Lake
WSU BAIHP staff worked with this affiliate to build a home (Figure 30) that was among the first to be certified under the Energy Star Homes Northwest program in the state. With additional assistance from Grant County PUD, Habitat exceeded Energy Star program specifications for heat pump efficiency, glazing, ceiling insulation, lighting and envelop tightness. Features included:

• Heat Pump HSPF= 8.25 SEER= 13.6
• Air handler and all duct work in conditioned space
• 4.0 ACH50 tested envelope tightness
• 128 ft2 glazing U=0.32
• Lighting – 95% Energy Star lamps
• Electric water heating EF= .93
• Ceiling R-49
• Floor over crawlspace R-30
• Walls 2x6 R=21
• Energy Star dishwasher
• Whole house ventilation meeting Washington State Ventilation and Indoor Air Quality Code

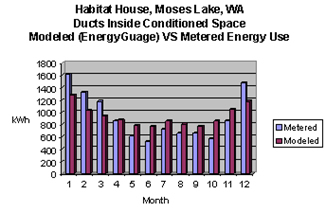

Figure 31. Total Metered Use (11,041 kWh) VS Total Modeled Use (11,107 kWh)

Built in 2004 in a 6835 heating degree day climate with four occupants, this all electric home used only 11,041 kWh of electricity (1.1 kWh/ft2-yr) in the first year of occupancy. Total metered energy use (11,041 kWh) conformed closely to the total modeled energy use (11,107 kWh) predicted by the Energy Gauge program (see Figure 31).

Washington State: Greater Puget Sound HFH
In 2004, WSU staff began providing technical support to Habitat for Humanity for a site built project in Olympia, WA (marine climate). Technical support included HVAC design, EnergyGauge analysis and field testing assistance. The Olympia home highlighted the challenges of integrating “green” technologies such as Icynene insulation and Rastra block walls. The home also used instant flow gas combo hydronic HVAC and HRV systems, and energy star lighting, appliances and was built “solar ready”. WSU continues to evaluate these homes; case studies were completed in the spring of 2006.

Table 19. Summary of BAIHP
Technical Assistance to Habitat for Humanity 1999-2006

II. Research with Habitat for Humanity

Figure 32. Local sponsors in front of 2nd ZEH built by Loudon County HFH in partnership with ORNL. FSEC provided monitoring for the 1st and 4th ZEHs

Tennessee: Loudon County HFH
At the request of ORNL Buildings Program Director Jeff Christian, BAIHP instrumented a third zero energy home (ZEH) built by Loudon County (TN) HFH (Figure 32) in the final year of the project. ORNL has built more than four such homes with the affiliate, and BAIHP previously instrumented and collected data on ORNL’s behalf from Loudon County’s first ZEH which showed results of $80 net annual electric cost and an ACEEE paper was authored by ORNL and FSEC. BAIHP assisted with data collection on the fourth ZEH also. The affiliate has provided valuable feedback on the SIP construction process to other interested affiliates. Data is available on-line at www.baihp.org in the “Current Data” section of the site.

West Virginia: Almost Heaven HFH
During the final year of the project, BAIHP commenced instrumentation of a SIP house with radiant floor heating built by Almost Heaven HFH’s (Franklin WV), a CBA affiliate. Actual data on the performance of radiant slab heating systems is scant; however, there are many claims of energy savings and greatly improved comfort. BAIHP staff members were on hand for the construction and pouring of the radiant slab. Instrumentation consists of temperature probes embedded in the ground 1 and 3 meters from the slab, on the sides of the slab, and at three interior locations under and in the slab; the middle of the house, 1 meter form the edge of the slab, and in between these two locations. When the house is completed, and heating equipment is set in place, a final trip to complete the instrumentation will be carried out. At the end of this Budget Period, construction of the house was still under way with completion anticipated in the fall of 2006 or early in the spring of 2007.

Structural Insulated Panel Construction Study
Plains, GA (Sumter County HFH, now defunct)
Most of Habitat's 1400+ American affiliates build wood frame houses. However, some affiliates are experimenting with other systems including straw bale construction, ICFs, and SIPs. Sumter County Habitat for Humanity, the original affiliate started by Habitat founder Millard Fuller, partnered with the Department of Energy and the Structural Insulated Panel Association (SIPA) to build two SIP houses in Plains, Georgia. This field project seeks validation of heating energy savings from SIPs.

Figure 33. Energy Use in this Sumpter County Habitat Home, Built with Conventional 2x4 Framing in Plains, GA, was Compared to SIP Construction

The affiliate built the two SIP houses and a frame house on three neighboring lots. The Structural Insulated Panel Association (SIPA) provided some assistance with the SIP houses. The three houses were intentionally built with their calculated energy performance (HERS ‘99 score) similar to each other as seen in Table 20. The frame house (Figure 33) featured energy related details typical for the affiliate which resulted in an ACH50 of 5.3. With the home's whole-house fan cover installed the ACH dropped to 3.9, very good for frame construction. However, testing results revealed much better performance in the SIP houses with a measured ACH50 of 1.8. Though this indicates a 50% decrease in infiltration, that does not correlate directly into a 50% heating energy savings since infiltration determines only a portion of the total heating energy use. Other factors include insulation levels, conditioned square footage, window area, number of occupants, occupancy patterns, use of supplemental heaters, heater operation strategy, and indoor temperature. Monitoring equipment was installed to measure total, heating, and water heating energy use, as well as indoor and outdoor temperature.

Table 20. Sumter County (GA) Habitat for Humanity Field Study

A 1995 study of 10 Habitat homes in Florida City, Florida revealed that the maintained indoor air temperature heavily influences conditioning energy use (Parker, et al. 1995). Analysis suggests that this may be a significant factor in this Sumter County study. The frame house consistently maintained a higher indoor temperature than the SIP houses. The impact of this considerable difference (average of 5F) is accounted for an analysis of heating energy use (per 1,000 ft2 of conditioned space) relative to the indoor to outdoor temperature difference. This revealed that the SIP houses saved 25% compared to the frame house.

A previous study conducted in Louisville, Kentucky comparing SIP to frame construction found a 15% savings for the SIP construction (Rudd, 1997). In that study, the duct systems for both houses were located in conditioned spaces. The Plains SIP houses had ducts in the conditioned space while the frame house had ducts in the unconditioned attic. The 10% difference in the Plains and the Louisville findings are attributed to the differences in duct system locations. Together, these two studies suggests that homes of 1,200 ft2 and smaller stand to gain significant energy performance from SIP construction with heating energy savings of 15-25% depending on duct location and average indoor-outdoor temperature differences.

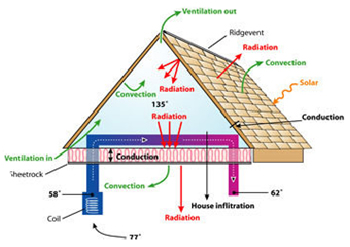

Figure 34. Vented Attic Thermal Processes

BA Roofing Study with Lee County HFH (FL)
Ft Myers, Florida
Roof and attic thermal performance exert a powerful influence on cooling energy use in Florida homes. Unshaded residential roofs are heated by solar radiation causing high afternoon attic air temperatures. The large influence on cooling is due to increased ceiling heat transfer as well as heat gains to the duct systems which are typically located in the attic space (Figure 34).

The Florida Power and Light Company and the Florida Solar Energy Center instrumented six side-by-side Habitat homes in Ft. Myers, Florida (Figure35) with identical floor plans and orientation, R-19 ceiling insulation, but with different roofing systems designed to reduce attic heat gain. A seventh house had an unvented attic with insulation on the underside of the roof deck rather than the ceiling:

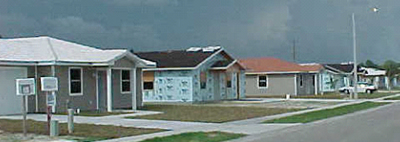

Figure35. Street scene showing the three closest homes
(from left: white "barrel" s-tile (RWB), terra cotta s-tile (RTB) and white metal (RWM)).

All seven houses were completed by June 26th, 2000 with extensive testing to assure the buildings were similar. Each home was monitored simultaneously from July 8th - 31st in an unoccupied state.

Figure 36. Project Meterological Station

Building thermal conditions and air conditioning power were obtained on a 15-minute basis. Each of the examined alternative constructions exhibited superior performance to dark shingles. Figure 37 plots the maximum daily air temperature to the maximum recorded at mid-attic in each construction. Figure 38 shows the average daily attic air temperature profile.

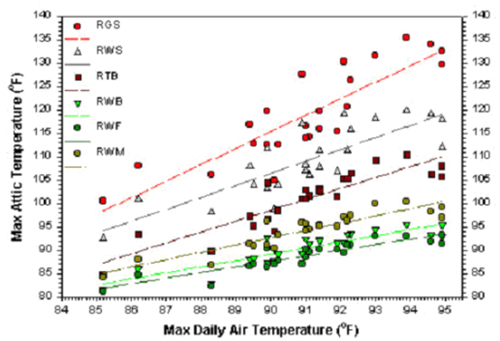

Figure 37. Relationship of peak air to peak attic temperatures.

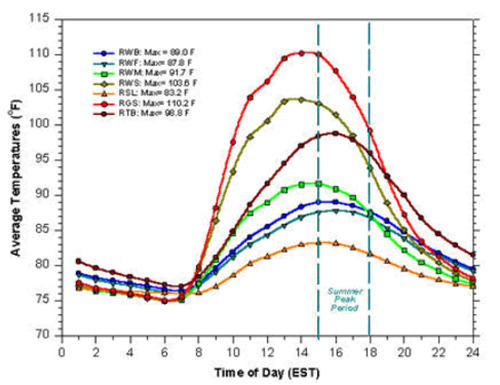

Figure 38. Average attic air temperatures over unoccupied period.

Table 21. Cooling Performance During Unoccupied Period July 8th - 31st, 2000

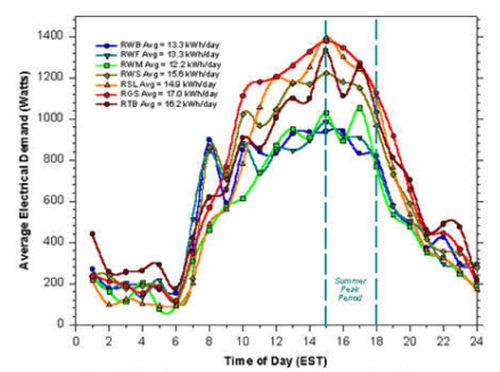

Figure 39. Average space cooling demand and profiles over the unoccupied period.

The above results are for the 1,144 square foot homes in the study. Since savings largely scale with ceiling area, the kWh and kW values should be normalized by the applicable ratio. For instance, typical FPL homes of 1,770 square feet would have estimated absolute savings 55% greater than above. Also, normalizations were made for slightly different thermostat set points and the measured performance of individual AC units.

Table 22. Summary of Normalized Savings and
Demand Reductions from Regression Estimates

Additional monitoring took place over a month long period with the homes occupied, but the thermostat set points were kept constant. Although average cooling energy use rose by 36%, analysis indicated no decrease to savings or demand reduction from the highly reflective roofing systems. The added heat gains from appliances and people increase cooling system run-time causing the duct system to run for longer periods to exchange heat from the often hot attic space.

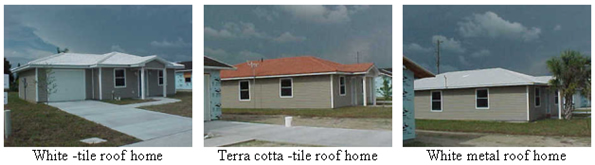

Figure 40 Examples of different roof materials used.

The results in Tables 21 and 22, show essentially two classes of performance: white shingles, terra cotta tile and sealed attic construction which produce energy savings of 200 - 600 kWh/yr and demand reductions of 0.05 - 0.5 kW. Highly reflective roof systems produce energy savings of 1,000 - 1,600 kWh with demand reductions of 0.8 - 1.0 kW. A separate analysis of the data using a special version of the DOE-2.1E computer simulation verified the magnitude of the measured energy and demand reductions.

In summary, this evaluation strongly confirms the energy-saving benefits of using more reflective roofing systems in Florida. Selection of colors with higher solar reflectance will result in tangible cooling energy savings for customers. This is particularly true for roofing materials such as tile and metal, which are currently available with solar reflectance of 65%-75% range. The selection of reflective roofing systems represents one of the most significant energy-saving options available to homeowners and builders. Such systems also strongly reduce the cooling demand during utility coincident peak periods and may be among the most effective methods for controlling demand.

Training with Habitat for Humanity
BAIHP participates regularly in Habitat regional and national conferences providing 1 hour, 2 hours, or 4 hour sessions on building science topics including the BA systems engineering approach. More detail on this activity is included in the “BAIHP Training” portions of this report. A summary of training activities is provided here:

• Southeastern HFH Conference 1996 – 2006
• HFHI 20th Anniversary 1997
• Florida HFH Conference 1998
• Cocoa, FL Building Science Focus Training 1999
• Syracuse, NY Building Science Focus Training 1999
• Affordable Comfort 2 day HFH Training 1999
• Portland, OR Building Science Focus Training 2000
• New York City, NY JCWP Homeowner Energy Course 2000
• Florida Construction Roundtable 2001
• Top 40 Conference 2001
• Ohio Building Science Focus Training 2002
• Central Atlantic Regional Conference 2004
• National Leadership Conference 2004
• National Urban Conference 2005
• Florida Construction Roundtable 2005
• Pacific North West. Construction Roundtable 2005
• USGBC Charrette for Habitat’s Gulf Coast Recovery, 2005
• National Leadership Conference/ Urban Conference 2005
• Western States Leadership Conference/Rural Conference 2006
• Phoenix, AZ National Building Science Focus Training 2006



Back to Table of Contents
